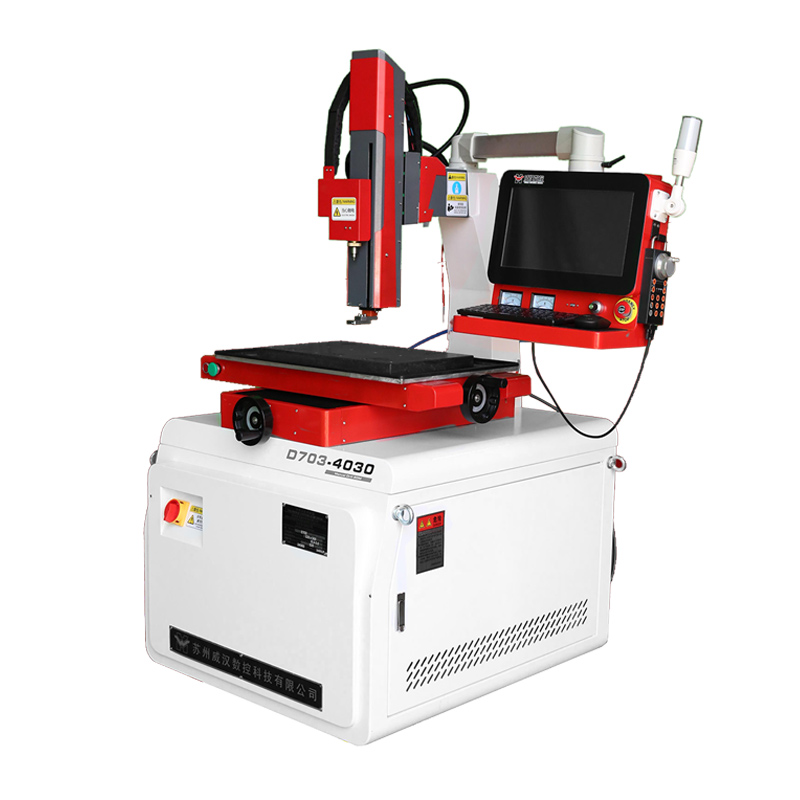

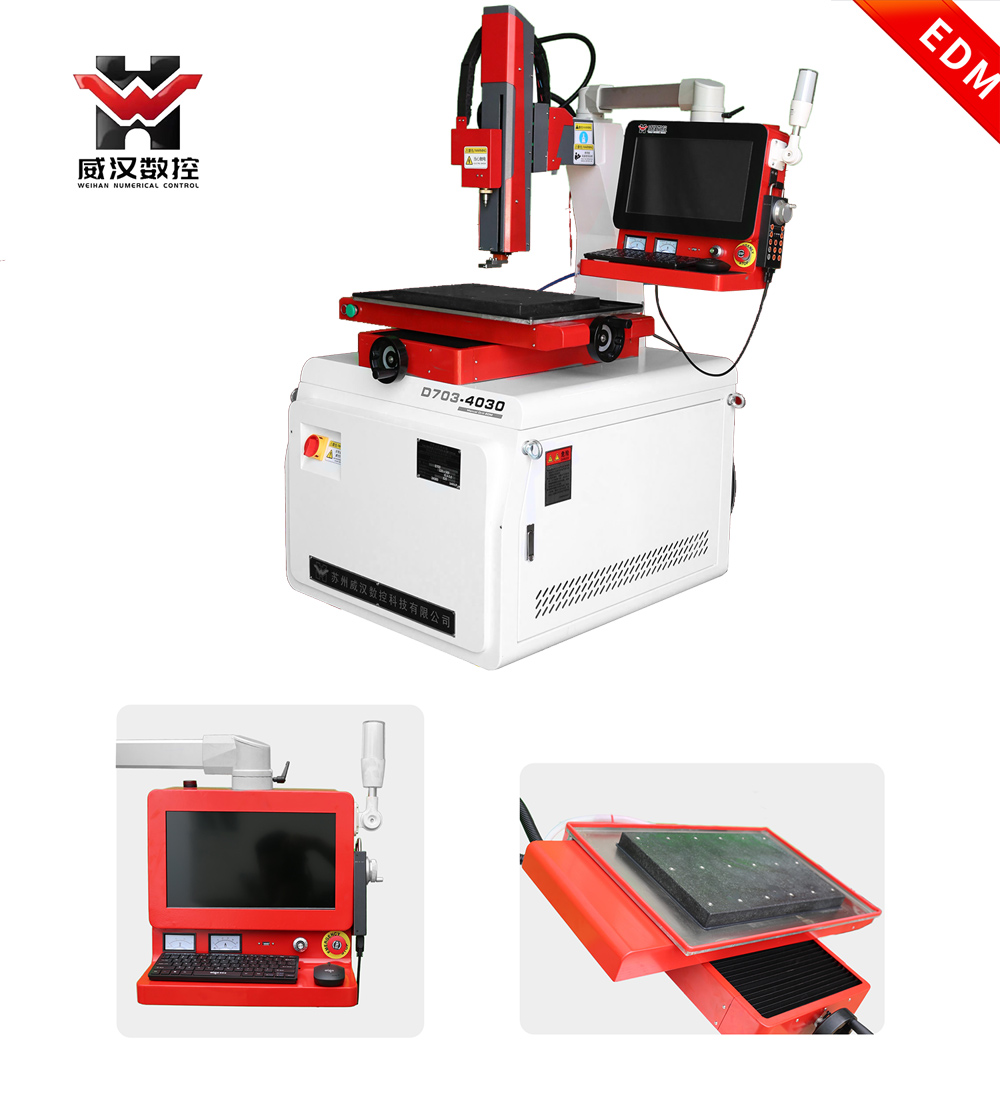

D703S CNC穿孔机
产品详情
D703S Technical Specifications | ||
Parameter Name | unit | parameter values |
bed dimension | mm | 500×320 |
Diameter of clamping electrode | mm | 0.3-3.0 |
travel of spindle | mm | 300 |
Spindle servo stroke | mm | 320 |
Rotation head (C-axis) rotation count |
RPM | 220 |
X×Y route or distance of travel | mm | 300×400 |
Maximum distance between the guide and the workbench | mm | 300 |
Maximum processing current | A | 30 |
Enter maximum power | KW | 2.5 |
Work liquid tank capacity | L | 25 |
Maximum working fluid pressure | MPa | 10 |
Weight of machine tools | Kg | 550 |
Machine tool dimensions | mm | 1000×1000×1800 |
Working liquid filtration method | Slotless | |
Monitor size | 19 inches | |
威汉数控（泰州）有限公司拥有两大生产基地，分别位于泰州和苏州。工厂占地面积8000平方米，拥有员工50人，拥有20年的生产和销售经验。主要生产研发：数控穿孔机、中走丝线切割、快走丝线切割、慢走丝线切割、穿孔机、中走丝线切割、火花机、穿孔机等各种加工产品以及各种加工设备。
